Product ID: | A02-**D*****0 |

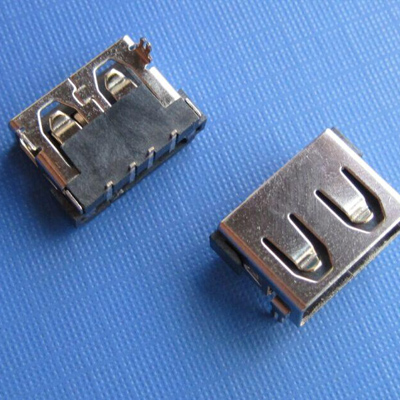

product name: | 10.00 wide DIP type on USB A type board (solder pin: DIP, case: DIP) |
specification: | Plastic: High temperature UL94V-0; Terminal: Copper alloy shell: Copper alloy orSPCC |
Product Note: | A type female head, terminal DIP type housing DIP type L10.00*W13.20*H6.8 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms Min.
6. Withstanding voltage: 500V AC for 1 minute
7. Durability times: 10000 times
8. Product temperature resistance: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigators , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine plug terminals -> bending and folding tape -> after the assembly plug -> assembly of the shell -> electrical inspection -> pressure test -> Hole Gauge Inspection-->Appearance Inspection-->FQC Inspection-->Storage
