Product ID: | SUSF009001117JK |

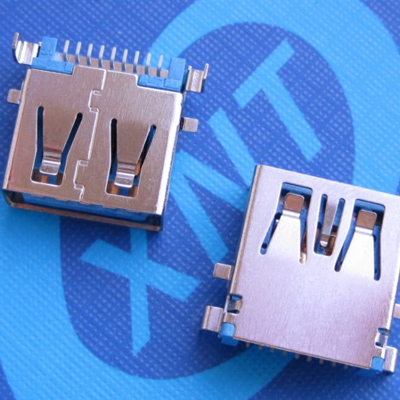

product name: | USB3.0 sink depth 2.22 board height 3.5 crimp terminal pin SMT harpoon |
specification: | Plastic: Blue High Temperature UL94V-0; Terminal: Copper Alloy Housing: Copper Alloy |
Product Note: | USB3.0 Female, Sink 2.22mm, Terminal SMT Housing Front Post Backplane Type L16.10*W14.25*H7.12 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1A
2. Operating temperature: -25°C ~ +85°C
3. Storage temperature: -25°C ~ +85°C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms min ./500VDC
6. Withstand voltage: 500V AC for 1 minute
7. Durability times: 1500 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3 The production process of this product is: pre-line inspection-->folding material tape-->assembly terminal strips-->assembly shell-->riveting shell-->electricity inspection-->pressure test-- > Flatness test-->Positiveity test-->Appearance test-->FQC test-->Storage
