Product ID: | 010101010-016 |

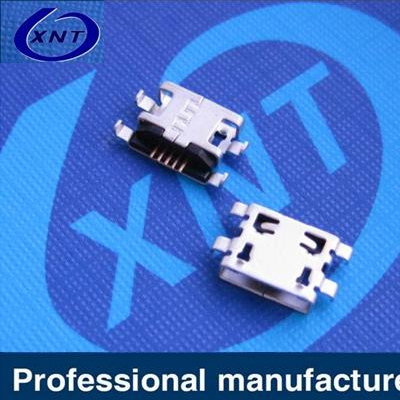

product name: | microUSB AB type 5pin sink 1.45mm |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel |
Product Note: | AB type female connector, terminal SMT type housing DIP type L7.50*W5.85*H2.45 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +80 °C
3. Storage temperature: -30 °C ~ +80 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 245±5°C
9. RoHS compliant
10. Terminal gold plated GF
Product Description:
1. This connector is widely used Mobile phones, tablet PCs, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting -> assembled shell -> riveted shell -> electrical inspection -> pressure test -> flatness Inspection-->Appearance Inspection-->FQC Inspection-->Storage
