Product ID: | XNT-SIM-0062 |

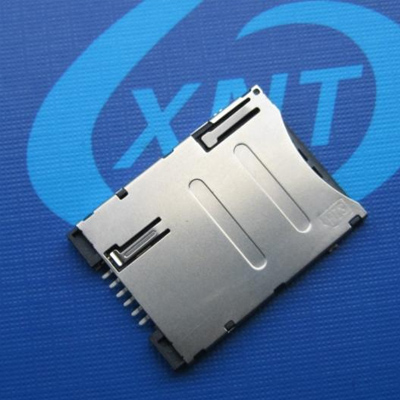

product name: | Sim push type 6+1pin with CD (normally closed) with positioning column |
specification: | Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel |
Product Note: | Push type with CD terminal (normally closed), SMT type L20.16*W26.84*H1.80 |
Product Category: | SIM microSim NanoSIM |
Technical parameters:
1. Rated current: 0.5A AC / DC
2. Rated voltage: 5V AC / DC
3. Operating temperature: -40 °C ~ +60 °C
4. Storage temperature: -40 °C ~ +60 °C
5. Contact resistance : 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability: 3000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10 Mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process For: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> Cutting adhesive ribbons-->Assembly CD terminals-->Embossing CD terminals-->Assembled sliders, tie rods, springs-->Assembled housings-->Push inspection-->Electrical inspection-->Flatness inspection- -> Positive test -> Appearance test -> FQC test -> Check in
