Technical parameters:
1. Rated current: 0.5A AC/DC
2. Rated voltage: 5V AC/DC
3. Operating temperature: -55°C ~ +85°C
4. Storage temperature: -55°C ~ +85°C
5. Contact resistance : 100m ohms max.
6. Withstand voltage: 250V AC / 1 minute
7. Insulation resistance: 500M ohms min./500VDC
8. Durability: 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10 Mm MAX.
11. RoHS compliant
12. Stable and superior performance

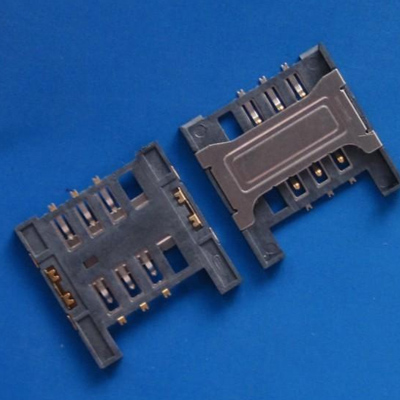

Product Description:
1. This connector is widely used in mobile phones, tablet computers, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process For: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: on-line inspection -> Automatic Assembly of Terminals and Enclosures-->Electrical Inspection-->Flatness Test-->Positive Inspection-->Appearance Inspection-->FQC Inspection-->Storage
