Product ID: | XNTUSB-A13670PK |

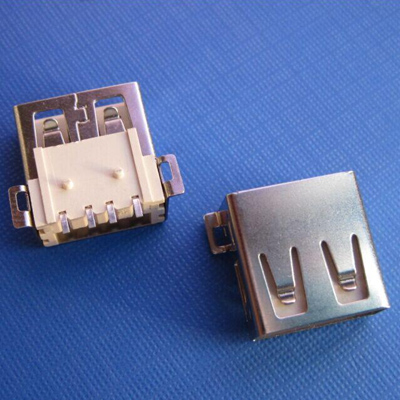

product name: | SMT type on USB A type board (solder leg: SMT, case: SMT) without crimping |
specification: | Plastic: High temperature UL94V-0, white; Terminal: Copper alloy or stainless steel Shell: Copper alloy |
Product Note: | A type female connector, terminal SMT type housing SMT type L13.70*W13.15*H7.00 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms Min.
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigators , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine plug terminal -> after the assembly plug -> assembled shell -> electrical test -> pressure test -> flatness test -> appearance test - ->FQC Inspection-->Storage
